| Range | TeSys |
|---|---|

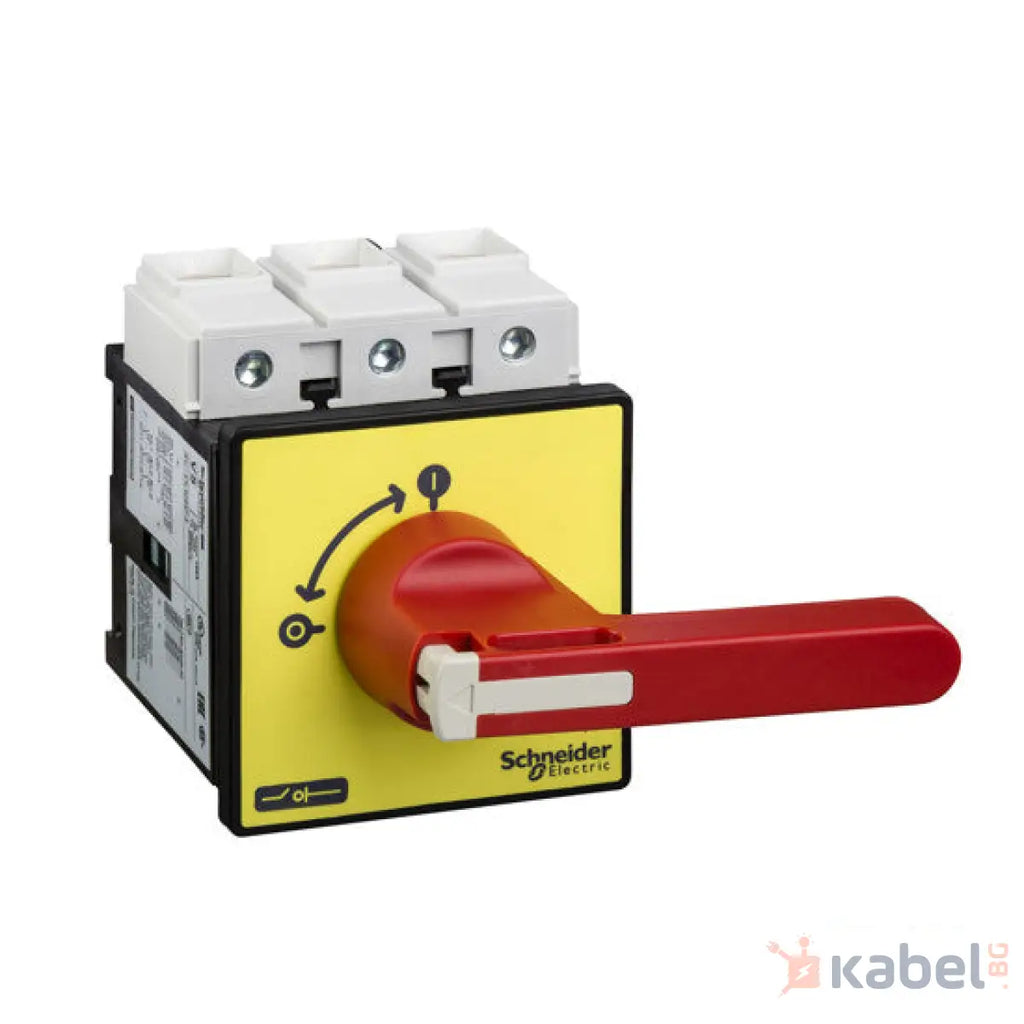

| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| Product Type | Emergency stop switch disconnector |
| Device Composition | Дръжка Превключвател |
|---|---|
| Mounting Support | Дръжка: Врата Ключ: Врата |
| Mounting Method | С 4 винта за дръжка |
| Performance Level | Висока интензивност |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 30 kW при 230...240 V (AC-3) 37 kW при 400...415 V (AC-3) 37 kW при 690 V (AC-3) 45 kW при 500 V (AC-3) 45 kW при 690 V (AC-23A) 55 kW при 500 V (AC-23A) 30 kW при 230...240 V (AC-23A) 45 kW при 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 83 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 175 A |
| [Ithe] Conventional Enclosed Thermal Current | 140 A |
| Making Capacity ( I Rms) | 1750 A при 400 V AC-21A 1750 A при 400 V AC-22A 1750 A при 400 V AC-23A |
| Breaking Capacity | 1400 A при 400 V (AC-21A) 1400 A при 400 V (AC-22A) 1400 A при 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA при 400 V 200 A aM 10 kA при 400 V 200 A gG |
| [Icm] Rated Short Circuit Making Capacity | 2,8 kA при 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 2100 A при 400 V 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Да |
| Network Type | AC DC |
| Intermittent Duty Class | 30 |
| Control Type | Въртяща се дръжка |
| Rotary Handle Mounting Style | Директна |
| Handle Color | Червен |
| Handle Front Plate Color | Жълт |
| Rotary Handle Padlocking | 1 до 3 ключалки 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Електрическа верига: Самозатягащи се клеми 95 mm² Твърд Електрическа верига: Самозатягащи се клеми 70 mm² гъвкав - С кабелен накрайник |
| Tightening Torque | Електрическа верига: 22,6 N.m Самозатягащи се клеми |
| Base Dimension | 90 x 90 mm |
| Height | 125 mm |
| Width | 90 mm |
| Product Weight | 1,2 kg |
